Impedance Of A Capacitor Phasor

Mathematically we say that the phase angle of a capacitors opposition to current is 900 meaning that a capacitors opposition to current is a negative imaginary quantity. The impedance of a resistor is simply its resistance a real value but the impedances of a capacitor or an inductor are both imaginary.

Series Resistor Capacitor Circuits Reactance And Impedance

What Is Impedance Difference Between Impedance And Resistance

Series Rlc Circuit And Rlc Series Circuit Analysis

The impedance of an ideal capacitor is equal in magnitude to its reactance but these two quantities are not identical.

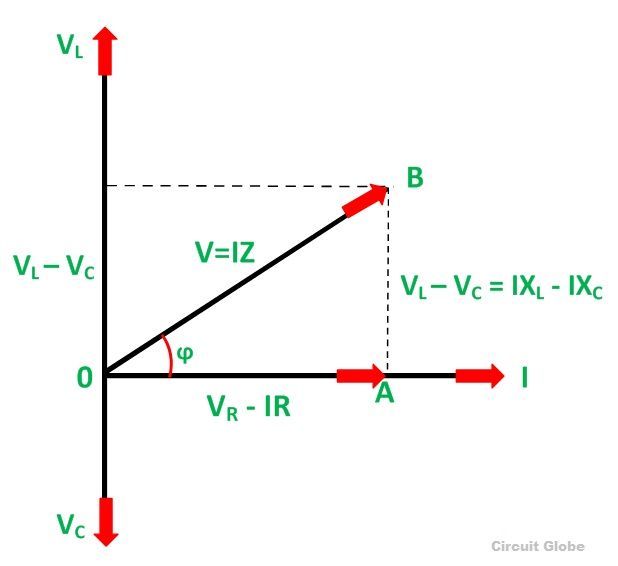

Impedance of a capacitor phasor. To find this total voltage we cannot just add the voltages v r v l and v c. Several facts are obvious from this formula alone. The impedance of an ideal resistor is equal to its resistance.

In this case the real part of the impedance is the resistance and the imaginary part is zero. It is customary to use the angle by which the voltage leads the current. See figure above this phase angle of reactive opposition to current becomes critically important in circuit analysis especially for complex ac circuits where reactance and resistance interact.

The phase difference is 90 degrees. If the capacitive reactance is larger than inductive reactance impedance phasor will make a negative angle with the horizontal line or vice versa. When capacitors or inductors are involved in an ac circuit the current and voltage do not peak at the same time.

The unit of impedance is ohm. The capacitor voltage lags the current by 90 o as you can see from eulers formula. While resistances capacitances and inductances are constant values impedances are functions of frequency.

The impedance of a circuit is the total effective resistance to the flow of current by a combination of the elements of the circuit. The final impedance can be leading or lagging depending upon the difference between the capacitive and inductive reactance magnitude. Finally the current in an inductor lags the voltage by 90 degrees so the phasor representing the impedance of the inductor is at 90 degrees to the voltage.

W the total voltage across all 3 elements resistors capacitors and inductors is written. The current through the capacitor leads the voltage by 90 degrees so the phasor representing the impedance of the capacitor is at 90 degrees to the voltage. The identical voltage and current amplitudes indicate that the magnitude of the impedance is equal to one.

Where zc is the impedance of a capacitor w is the angular frequency given by w 2pf where f is the frequency of the signal and c is the capacitance of the capacitor. The resistance of an ideal capacitor is zero. The fraction of a period difference between the peaks expressed in degrees is said to be the phase difference.

The phase angles in the equations for the impedance of capacitors and inductors indicate that the voltage across a capacitor lags the current through it by a phase of while the voltage across an inductor leads the current through it by. The reactance of an ideal capacitor. The phasor description for a capacitor has a form similar to ohms law showing that a capacitors impedance is earlier you saw a phasor diagram of a capacitor.
